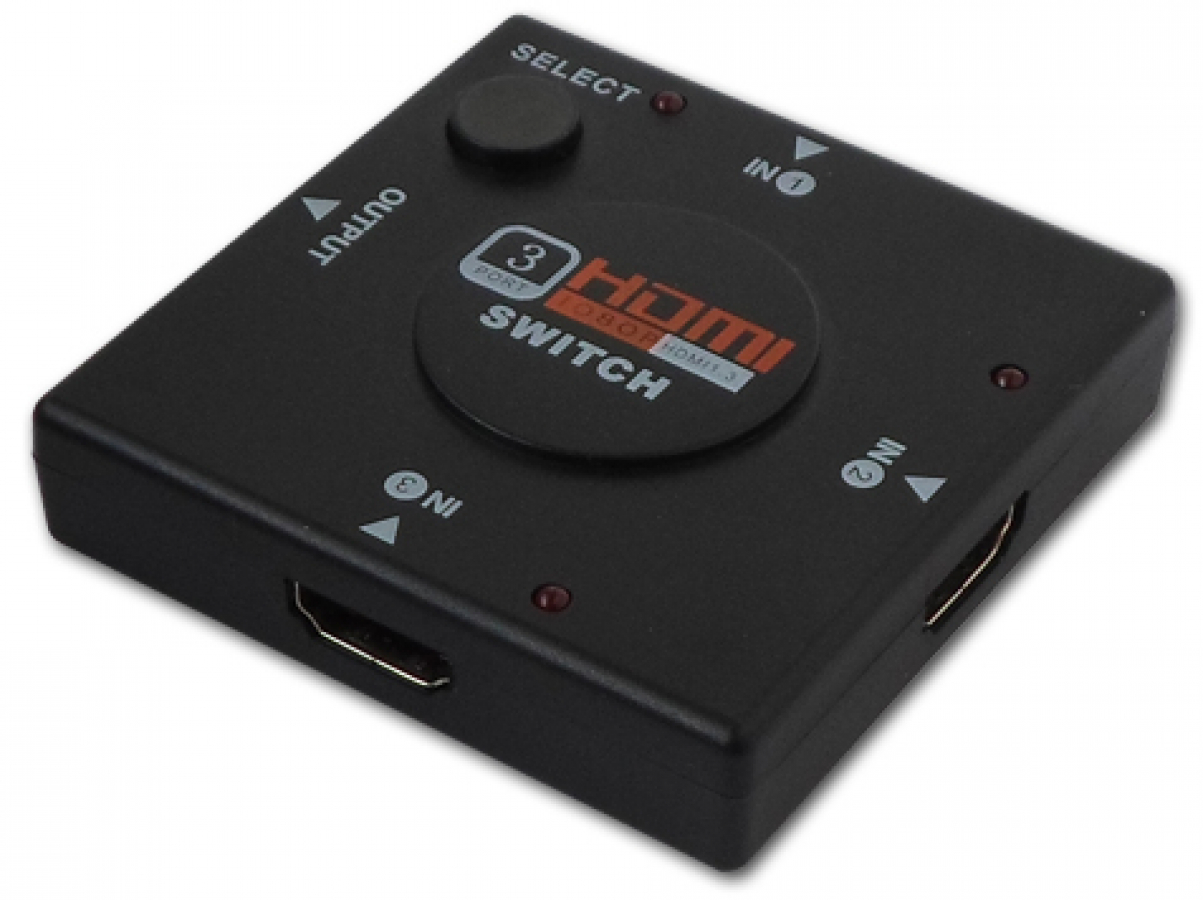

Savio HDMI Switch – 3 ports

HDMI Switch – 3 ports CL-26 connects 3 devices, eg DVB-T set-top box, computer, DVD player, console Ps3/xbox, etc. to a single receiver such as a TV or monitor. Very useful when the receiver does not have enough HDMI inputs.

2 work modes:

• Intelligent – automatically selected source is turned on (the other must be completely turned off)
• Manual – source selection button

Specification:

• 3 Inputs and one HDMI Type A 19pin
• Gold-plated HDMI sockets
• Supported Resolution: FULL HD TV 1080p, graphics to 1440p, computer image to 1920×1200
• Compensation of losses in the cable by strengthening the digital signal
• Supports 12-bit Deep Color, high efficiency: up to 2.5Gbps
• Switching modes: automatic or manual
• Active Input Indication LED
• No additional power supply required

Application example:

• Connects several devices to one receiver.
