Product main parameters
Chipset AMD B850
Form factor ATX
Processor manufacturer AMD
Socket AM5
DDR type DDR5
Number of slots 4
M.2 Connections 3
Article B850 GAMING PLUS WIFI
Product code BD123661
Manufacturer MSI
Weight (kg)
Bar codes
4711377285438
All parameters
DETAILS
Chipset
AMD B850
Form factor
ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM5
Processor type
AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
RAM
DDR type
DDR5
DDR speed
5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Number of slots
4
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek ALC897
7.1-Channel High Definition Audio
LAN
Realtek 8126VB 5G LAN
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
3
Internal connections
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
4x System Fan
1x EZ Conn-header (JAF_1)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 5Gbps Type C ports

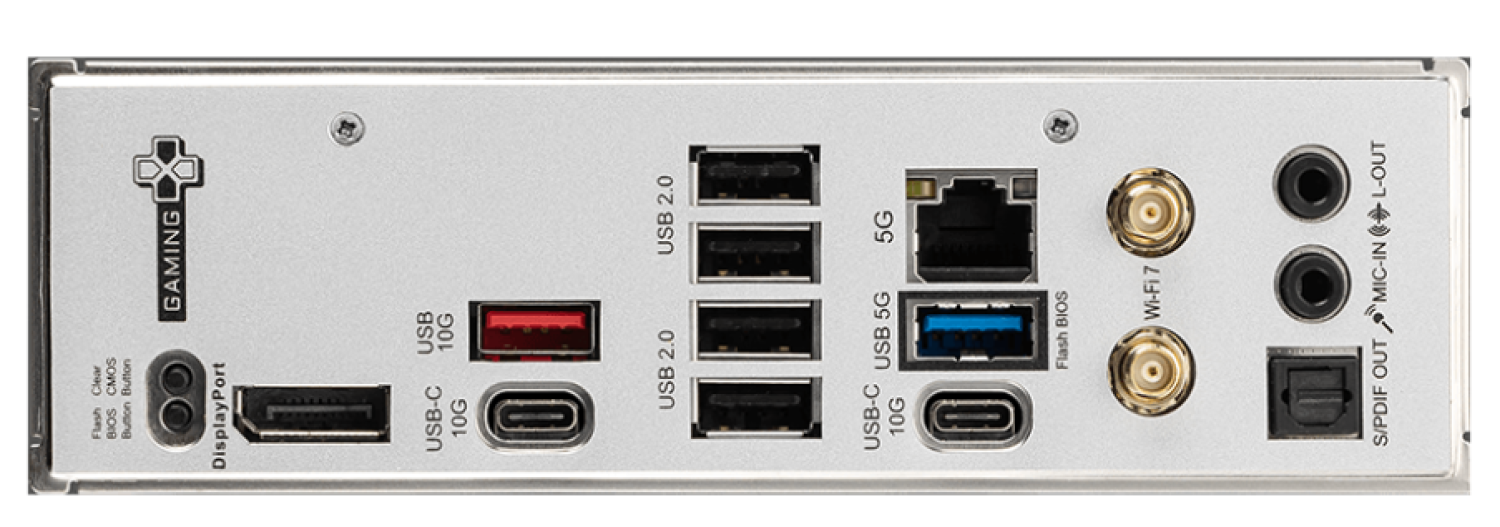

External connections
Clear CMOS Button
USB 10Gbps (Type-A)
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
DisplayPort
USB 10Gbps (Type-C)
USB 10Gbps (Type-C)
USB 5Gbps (Type-A)
S/PDIF-OUT
