Product main parameters
Chipset Intel B860
Form factor ATX
Processor manufacturer Intel
Socket LGA 1851
DDR type DDR5
Number of slots 2
M.2 Connections 2
Article 90MB1JB0-M0EAY0
Product code BD123861
Manufacturer Asus
Weight (kg)
Bar codes
4711387815991
All parameters
DETAILS
Chipset
Intel B860
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1851
Processor type
Support Intel® Core™ Ultra Processors
(Series 2)*
RAM
DDR type
DDR5
DDR speed
9066+MT/s (OC)
Number of slots
2
Max memory size
256 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
Realtek ALC1220P 7.1 Surround Sound High
Definition Audio CODEC*
LAN
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
WiFi
Yes
EXPANSION CONNECTIONS
M.2 Connections
2
Internal connections
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB
Type-C®)
1 x USB 5Gbps header supports 2 additional
USB 5Gbps ports
1 x USB 2.0 header supports 2 additional
USB 2.0 ports
Miscellaneous
2 x Addressable Gen2 headers
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header

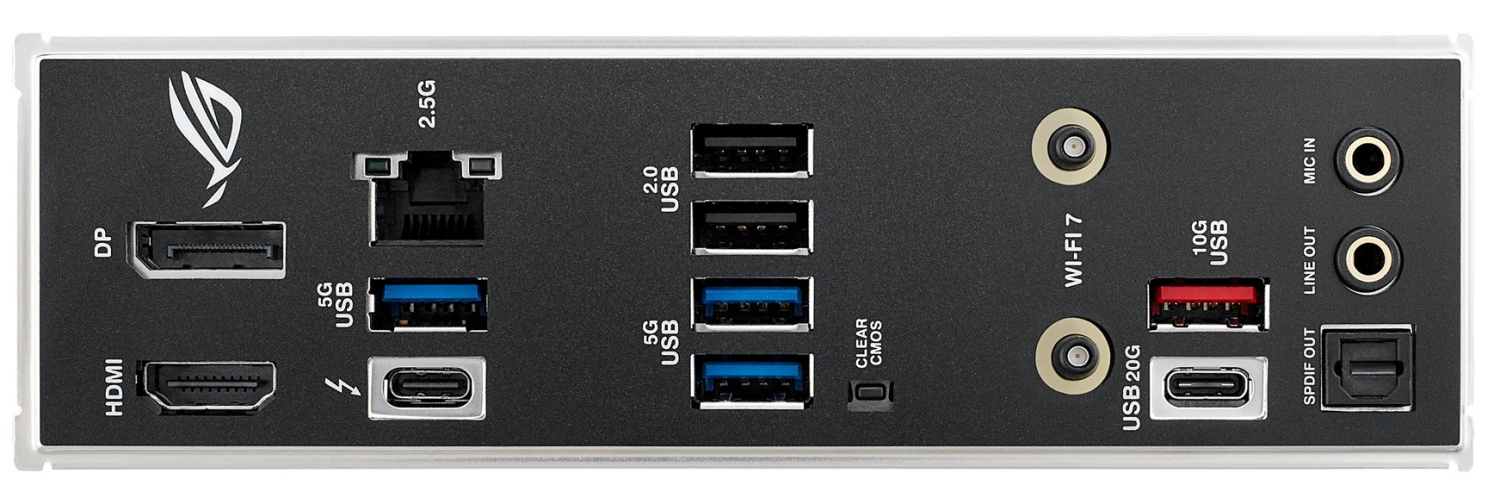

External connections
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
1 x USB 20Gbps port (1 x USB Type-C®)
1 x USB 10Gbps ports (1 x Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x Clear CMOS button
