Product main parameters
Chipset AMD B550
Form factor ATX
Processor manufacturer AMD
Socket AM4
DDR type DDR4
Number of slots 4
M.2 Connections 2

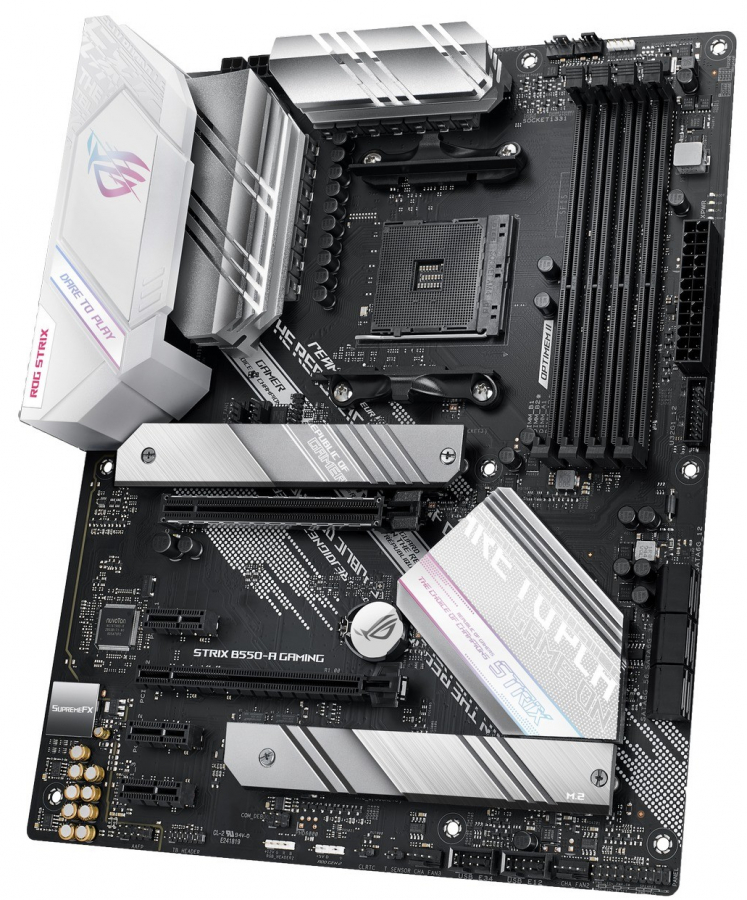

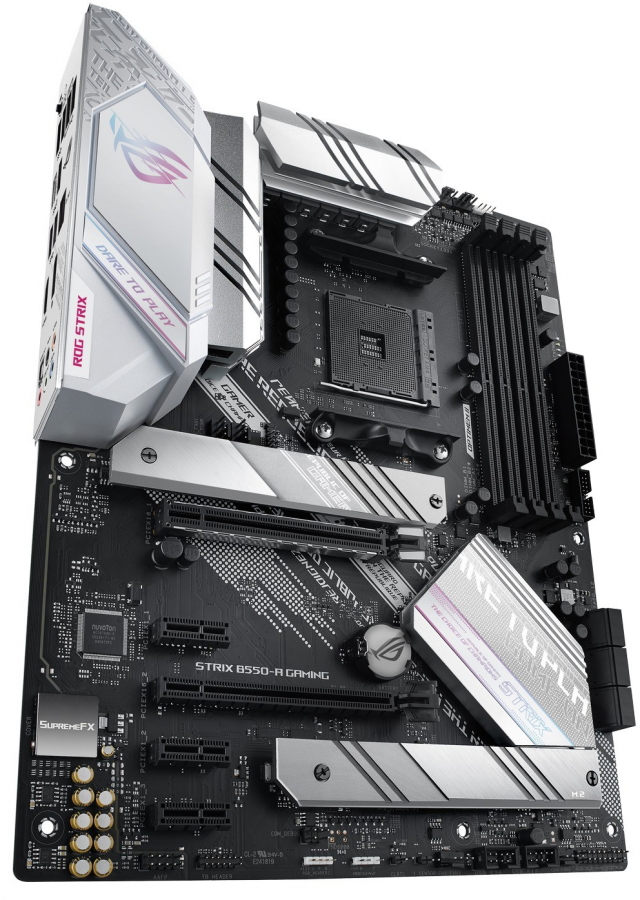

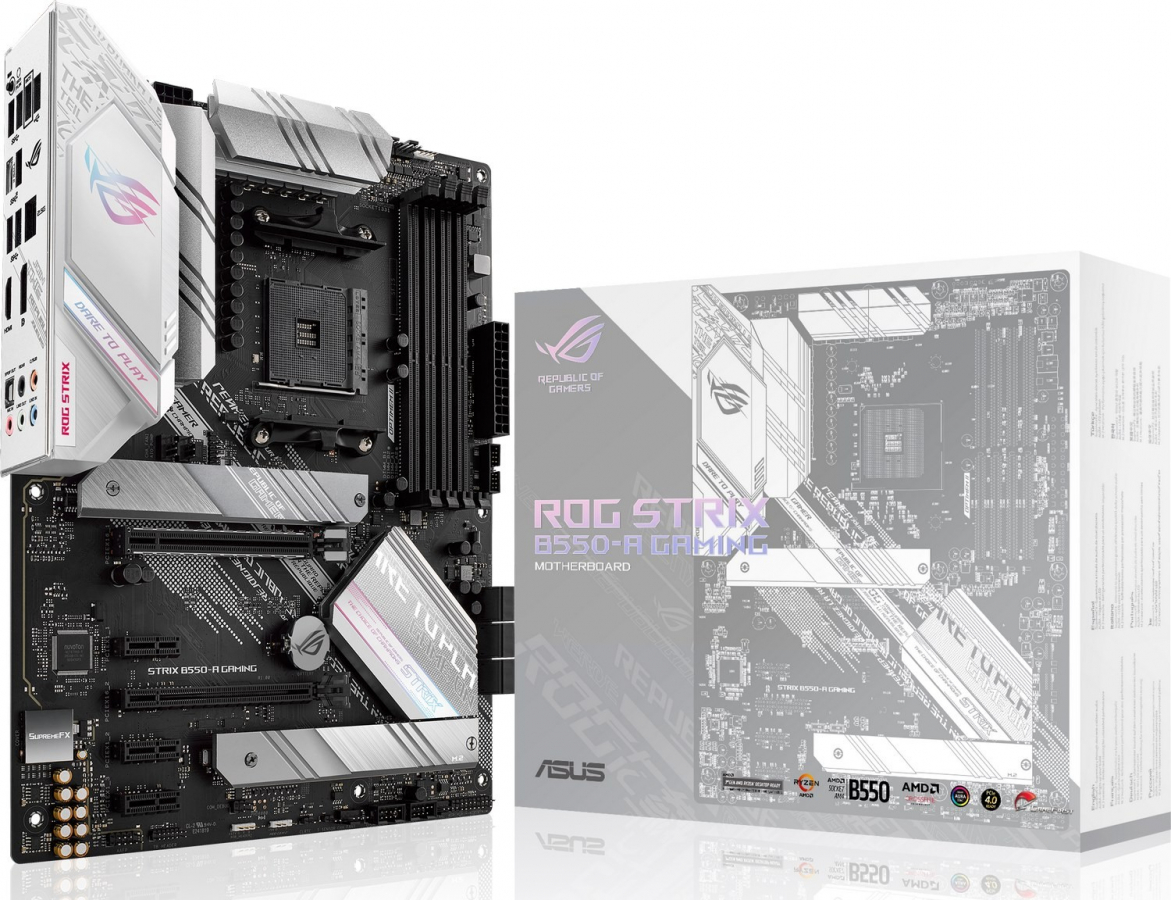

Article ROG STRIX B550-A GAMING
Product code BD112940
Manufacturer Asus
Weight (kg)
Bar codes
4718017826594 192876826591
All parameters
DETAILS
Chipset
AMD B550
Form factor
ATX
PROCESSOR
Processor manufacturer
AMD
Socket
AM4
Processor type
AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
LAN
Intel® I225-V 2.5Gb Ethernet
ASUS LANGuard
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
2
Internal connections
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)

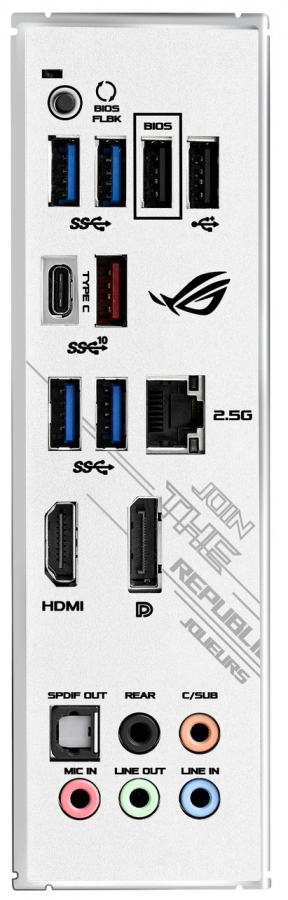

External connections
1 x Intel® I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
4 x USB 3.2 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
1 x BIOS FlashBack™ Button(s)
5 x Gold-plated audio jacks
