Product main parameters
Chipset Intel Z790
Form factor ATX
Processor manufacturer Intel
Socket LGA 1700
DDR type DDR5
Number of slots 4
M.2 Connections 4
Article Z790PGSONIC
Product code BD98594
Manufacturer Asrock
Weight (kg)
Bar codes
4710483941009
All parameters
DETAILS
Chipset
Intel Z790
Form factor
ATX
PROCESSOR
Processor manufacturer
Intel
Socket
LGA 1700
Processor type
13th Gen & 12th Gen Intel Core Processors
RAM
DDR type
DDR5
DDR speed
6800+(OC)
Number of slots
4
Max memory size
128 GB
AUDIO AND NETWORK DEVICES
Integrated audio card
LAN
WiFi
No
EXPANSION CONNECTIONS
M.2 Connections
4
Internal connections
1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)*****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)******
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

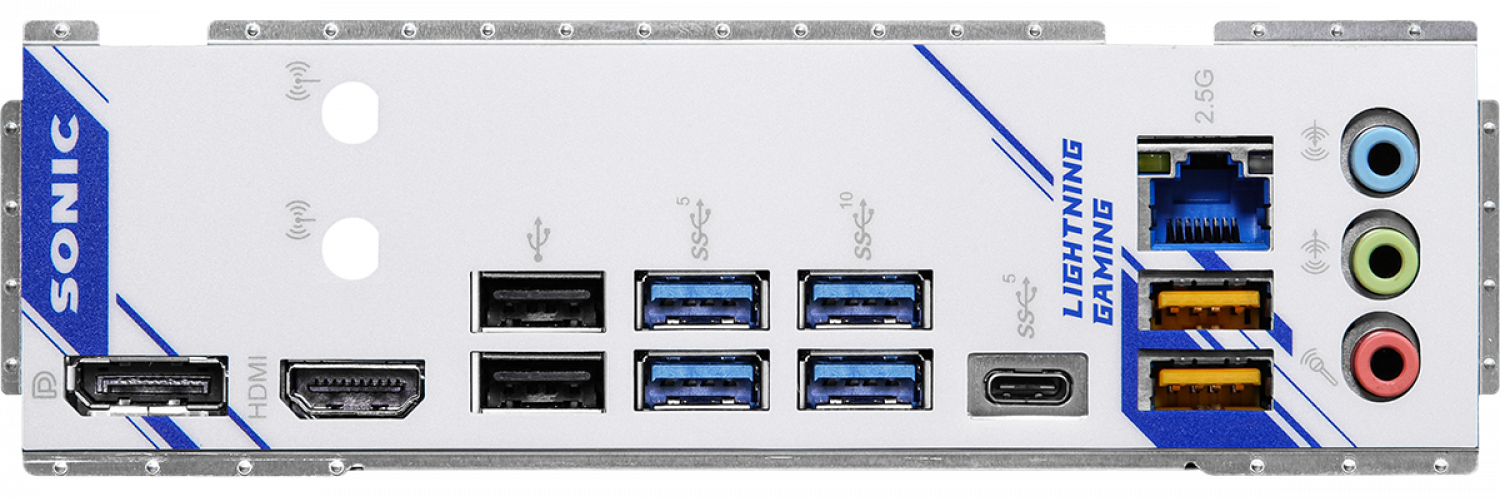

External connections
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
- 1 x USB 3.2 Gen1 Type-C Port
- 4 x USB 3.2 Gen1 Type-A Ports (USB32_56 are Lightning Gaming Ports.)
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
